Getting Started

These APIs are designed for reliability in real-world payment and order flows. Before integrating, it’s important to understand the core concepts that govern how orders, amounts, authentication, and errors are handled.

Most integration issues arise not from API usage, but from misunderstanding lifecycle rules, idempotency, or error handling. Reading this section will help you build a robust integration that is safe to retry, easy to reconcile, and production-ready.

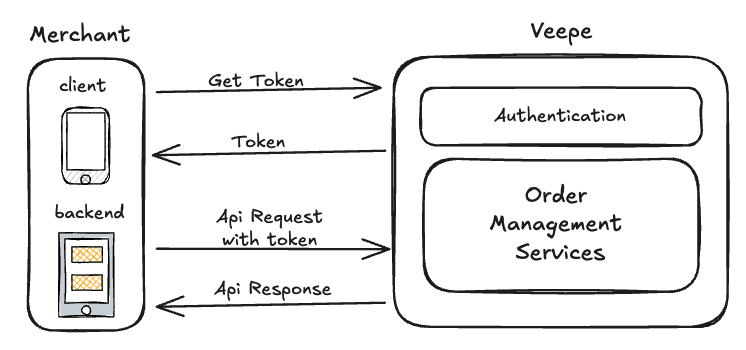

High-level architecture showing merchant integration

Order Lifecycle

Every order progresses through a carefully defined lifecycle, moving from creation to completion. At each stage, only specific, valid state transitions are permitted to ensure consistency, prevent errors, and maintain accurate tracking of order status.

Status	Allowed Next Statuses	Description
OPEN	CONFIRMED, CANCELLED, FAILED	Order is created and editable; can be confirmed, cancelled, or fail due to payment/system issues
CONFIRMED	PROCESSING, CANCELLED	Order is confirmed and locked; ready for processing
PROCESSING	SHIPPED, CANCELLED	Order is being processed; preparation or payment completion happening
SHIPPED	DELIVERED, CANCELLED	Order has been shipped to the customer; can still be cancelled in rare cases
DELIVERED	REFUNDED, CLOSED	Order delivered to customer; may require refund or closure
CANCELLED	REFUNDED, CLOSED	Order cancelled; refund may be issued, then closed
FAILED	CLOSED	Order failed due to payment or system issues; cannot progress further
REFUNDED	CLOSED	Order amount refunded to customer; next step is closing the order
CLOSED	-	Order lifecycle complete; terminal state

Only OPEN orders can be updated
Invalid transitions return 409 CONFLICT
CANCELLED, FAILED, CLOSED are terminal states

Checkout Page

The checkout page is a hosted, shareable payment page generated for a specific order and checkout session. It allows customers to complete payment by selecting from the payment gateways enabled by the merchant, while ensuring secure payment tracking, retries, and reconciliation against the order.

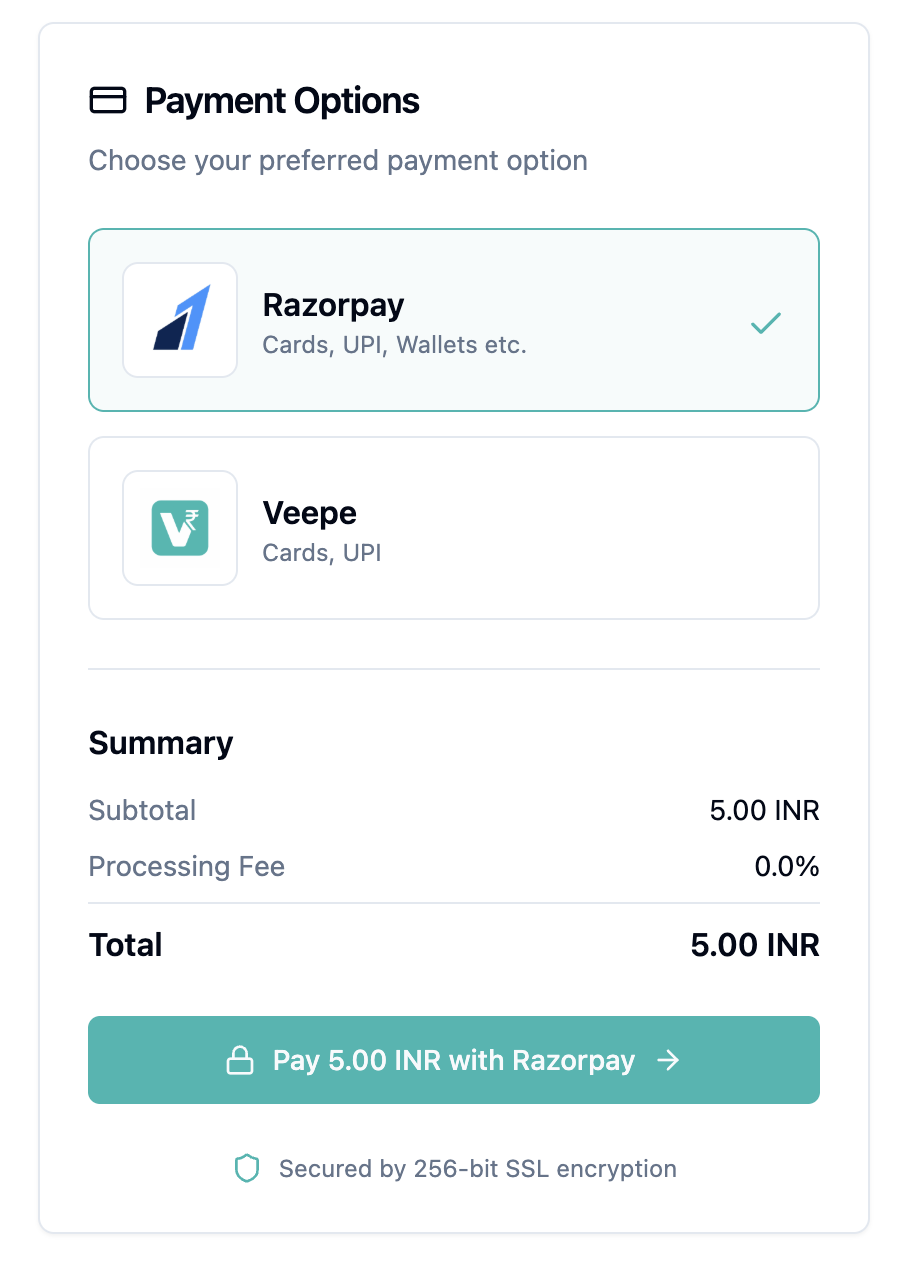

Hosted checkout page where customers select a payment gateway to complete payment

A checkout session is created for an order to initiate the payment process. Each session generates a unique checkout page URL that can be shared with the merchant’s customer to complete the payment.

{
  "sessionId": "vrFss1OtqVyAH3kmgeLry6PX",
  "orderId": "7b719e75-b235-4ffb-8130-efcae8f6bd90",
  "checkoutPageUrl": "https://<CHECKOUT_PAYMENT_LINK>"
}

Aspect	Description
Session Binding	Each checkout page is bound to a unique sessionId and orderId to ensure accurate payment attribution
Shareable URL	The checkoutPageUrl can be shared directly with the customer without authentication
Amount & Currency	Amount and currency are derived from the order and cannot be modified on the checkout page
Multiple Payment Attempts	Customers may retry payment using the same or different enabled gateways until the order is paid or closed
Order Mapping	All payment attempts from the checkout page are recorded against the same order

The checkout page displays all payment gateways enabled for the merchant such as Razorpay, Cashfree, or Veepe
Customers can select one of the available gateways to proceed with payment
Only gateways that are properly onboarded and configured are shown
If a gateway is disabled or misconfigured, it will not appear on the checkout page

Merchants must onboard separately with each payment gateway they wish to use
Required credentials such as API keys and secrets must be provided to the platform admin
Gateways are enabled only after credentials are verified and activated
For payment gateway onboarding or configuration assistance, contact support@veepe.in

The checkout page UI presents an order summary, payable amount, and a list of enabled payment gateways, providing a simple and secure payment experience for the customer.

Amount & Currency Handling

All monetary values use minor currency units.

Currency	Minor Unit
INR	1 INR = 100 paise
USD	1 USD = 100 cents

{
  "amount": {
    "currency": "INR",
    "value": 150000
  }
}

Always send amounts in minor units
Floating point values are not allowed
Currency must be ISO 4217 compliant

Idempotency & Merchant References

Idempotency ensures that repeated or retried requests—whether due to network issues, client errors, or server timeouts—do not result in duplicate orders being created. By providing a unique merchant-defined reference for each request, the system can safely recognize and ignore repeated submissions, guaranteeing that each order is processed exactly once. This mechanism is crucial for maintaining consistency, avoiding double charges, and ensuring reliable reconciliation between the merchant and our payment platform.

merchantOrderReference must be unique per merchant
Length must be between 3–50 characters
Duplicate references return the existing order

Key Generation & Authentication

All API access is secured using OAuth2-based authentication. Each merchant is issued unique credentials that are used to obtain access tokens. These tokens authenticate every request and ensure secure, scoped access to platform resources.

Before making any API calls, merchants must obtain a client ID and client secret. These credentials uniquely identify the merchant and are required to generate OAuth2 access tokens. Credential generation is handled by the platform support team during merchant onboarding.

Request client credentials by contacting support at support@veepe.in or via an official onboarding call
Support will generate and share a client ID and client secret for the merchant
These credentials are used exclusively for server-to-server authentication
Client secrets must be stored securely and never exposed in frontend applications

Once issued, the client credentials can be exchanged for an access token. Access tokens are JWT (JSON Web Token) based, digitally signed tokens that carry authentication and authorization information. Each API request must include a valid access token in the Authorization header.

Authorization: Bearer <access_token>

JWT access tokens contain standard claims such as issuer, subject, issued-at time, expiry time, and scopes. These claims allow the platform to validate the authenticity of the request, identify the merchant, and enforce permissions without additional database lookups.

Access tokens are time-bound and automatically expire after a configured duration
Expired or invalid tokens result in a 401 Unauthorized response
Tokens should be cached and reused until expiry to avoid unnecessary token requests

To support long-running integrations, refresh tokens may be issued alongside access tokens. Refresh tokens are used to obtain a new access token without re-authenticating using client credentials. This helps maintain uninterrupted access while limiting the lifetime of access tokens for security.

Refresh tokens have a longer lifespan than access tokens
Refresh tokens should be stored securely and treated as sensitive credentials
If a refresh token is compromised, it should be revoked immediately

For security reasons, the platform may rotate credentials or invalidate tokens. Merchants should design integrations to gracefully handle authentication failures and automatically retry token generation when required.

API Authentication

Every API endpoint provided by this platform mandates authentication via the OAuth2 protocol. To successfully access any resource, clients must include a valid access token with each request, ensuring that only authorized applications and users can interact with the APIs.

Authorization: Bearer <access_token>

Tokens are JWT-based
Tokens expire based on expires_in
Expired or invalid tokens return 401

Error Handling

All APIs return errors in a consistent format.

{
  "errorCode": 1006,
  "errorMessage": "Token is not valid or has expired"
}

HTTP	errorCode	Description
400	INVALID_REQUEST	Validation failed
401	UNAUTHORIZED	Invalid or expired token
404	NOT_FOUND	Resource not found
409	CONFLICT	Invalid state or duplicate request
500	INTERNAL_ERROR	Server error

POST/token

Generate Access Token

Generates an OAuth2 access token using client credentials. This token is required to authenticate and authorize subsequent API requests on behalf of the merchant.

Request Headers

Field	Type	Required	Description
`Content-Type`	string	Required	Request payload format. Must be application/json.

Request Body

Field	Type	Required	Description
`grantType`	string	Required	OAuth2 grant type. Must be set to client_credentials.
`clientId`	string	Required	Unique client identifier issued to the merchant during onboarding.
`clientSecret`	string	Required	Confidential client secret associated with the clientId. Must be kept secure.

Example Request

{
  "grantType": "client_credentials",
  "clientId": "85ede33f-c1e7-441c-a1f3-b924cf158c13",
  "clientSecret": "NHK1GNSM2Vdq6FZIgMc9TEGWquog8c1x"
}

Response Fields

Field	Type	Required	Description
`access_token`	string	Required	JWT access token used for authenticating API requests.
`token_type`	string	Required	Type of token issued. Typically Bearer.
`expires_in`	number	Required	Token validity duration in seconds.
`scope`	string	Optional	Scopes granted to the access token.

Example Response

{
  "access_token": "eyJhbGciOiJSUzI1NiIsInR5cCI6IkpXVCJ9...",
  "token_type": "Bearer",
  "expires_in": 3600,
  "scope": "openid profile email"
}

Code Examples

cURL

curl -X POST https://api.veepe.in/v1/token   -H "Content-Type: application/json"   -d '{
    "grantType": "client_credentials",
    "clientId": "your-client-id",
    "clientSecret": "your-client-secret"
  }'

POST/orders

Create Order

Creates a new order for the authenticated merchant by validating order metadata, customer details, item breakdown, and total amount. Once validated, the platform persists the order in an OPEN state, generates a unique internal orderId used across payments, refunds, and settlements, and assigns a human-readable displayOrderId for merchant dashboards, customer communication, and operational support.

Request Headers

Field	Type	Required	Description
`Content-Type`	string	Required	Request payload format. Must be application/json.
`Authorization`	string	Required	Bearer Authorization header i.e. Bearer <access_token>, the same token which got generated using /token endpoint

Request Body

Field	Type	Required	Description
`orderType`	string	Required	Type of order. values: SALE, PURCHASE
`channel`	string	Required	Order source channel. values: APP, ECOMM, WEB
`merchantOrderReference`	string	Required	Merchant-side unique reference for idempotency and reconciliation. Merchant Order Reference must have at least 3 and max 50 characters.
`amount.currency`	string	Required	ISO currency code. Example: INR.
`amount.value`	number	Required	Total order amount in minor currency units. i.e. 1Rs = 100Paise
`customer.name`	string	Optional	Full name of the customer.
`customer.email`	string	Optional	Email address of the customer.
`customer.phone`	string	Optional	Customer phone number including country code.
`customer.address.street`	string	Optional	Street address of the customer.
`customer.address.city`	string	Optional	City of the customer address.
`customer.address.state`	string	Optional	State of the customer address.
`customer.address.postalCode`	string	Optional	Postal or ZIP code.
`customer.address.country`	string	Optional	Three letter country code of the address.
`orderDetails.items[].name`	string	Optional	Name or description of the item (Product).
`orderDetails.items[].quantity`	number	Optional	Quantity of the Product ordered.
`orderDetails.items[].unitPrice`	number	Optional	Unit price per item in minor currency units.
`orderDetails.metadata.<anyKey>`	string	Optional	Optional delivery or order notes. i.e. note, delivery instructions etc

Example Request

{
  "orderType": "SALE",
  "channel": "APP",
  "merchantOrderReference": "633876923",
  "amount": {
    "currency": "INR",
    "value": 500
  },
  "customer": {
    "name": "Vikas Pandey",
    "email": "vikas.pandey.customer@example.com",
    "phone": "+919876543210",
    "address": {
      "street": "456 Civil Lines",
      "city": "Raipur",
      "state": "Chhattisgarh",
      "postalCode": "492001",
      "country": "IND"
    }
  },
  "orderDetails": {
    "items": [
      {
        "name": "Fast Charge USB-C Cable (1m)",
        "quantity": 1,
        "unitPrice": 250
      },
      {
        "name": "Mini LED Desk Lamp (USB Powered)",
        "quantity": 1,
        "unitPrice": 250
      }
    ],
    "metadata": {
      "note": "Deliver between 9 AM and 5 PM on weekdays only",
      "source": "mobile_app",
      "promoCode": "SUMMERSALE20"
    }
  }
}

Response Fields

Field	Type	Required	Description
`displayOrderId`	string	Required	Human-readable order identifier.
`orderId`	string	Required	System-generated unique order ID.
`orderType`	string	Required	Type of order such as SALE.
`channel`	string	Required	Order origin channel.
`orderDate`	string	Required	ISO-8601 timestamp of order creation.
`merchantOrderReference`	string	Required	Merchant-provided reference ID.
`amount.value`	number	Required	Final order amount value.
`amount.currency`	string	Required	Currency of the order amount.
`orderStatus`	string	Required	Current order status. Example: OPEN
`customer.name`	string	Optional	Customer name.
`customer.email`	string	Optional	Customer email address.
`customer.phone`	string	Optional	Customer phone number.
`customer.address.street`	string	Optional	Street address.
`customer.address.city`	string	Optional	City.
`customer.address.state`	string	Optional	State.
`customer.address.postalCode`	string	Optional	Postal code.
`customer.address.country`	string	Optional	Country code.
`orderDetails.items[].name`	string	Optional	Item name.
`orderDetails.items[].quantity`	number	Optional	Item quantity.
`orderDetails.items[].unitPrice`	number	Optional	Item unit price.
`orderDetails.metadata.<anyKey>`	string	Optional	Optional metadata

Example Response

{
  "displayOrderId": "ORD-814350-ZW",
  "orderId": "3ea8e4e0-d82a-4e65-8407-c19f1a338732",
  "orderType": "SALE",
  "channel": "APP",
  "merchantOrderReference": "633876923",
  "amount": {
    "value": 500,
    "currency": "INR"
  },
  "orderStatus": "OPEN",
  "customer": {
    "name": "Vikas Pandey",
    "email": "vikas.pandey.customer@example.com",
    "phone": "+919876543210",
    "address": {
      "street": "456 Civil Lines",
      "city": "Raipur",
      "state": "Chhattisgarh",
      "postalCode": "492001",
      "country": "IND"
    }
  },
  "orderDetails": {
    "items": [
      {
        "name": "Fast Charge USB-C Cable (1m)",
        "quantity": 1,
        "unitPrice": 250
      },
      {
        "name": "Mini LED Desk Lamp (USB Powered)",
        "quantity": 1,
        "unitPrice": 250
      }
    ],
    "metadata": {
      "note": "Deliver between 9 AM and 5 PM on weekdays only",
      "source": "mobile_app"
    }
  },
  "orderDate": "2026-01-15T18:19:51.318977886Z"
}

Code Examples

cURL

curl -X POST https://api.veepe.in/v1/orders   -H "Content-Type: application/json"   -H "Authorization: Bearer <access_token>"   -d '{
    "orderType": "SALE",
    "channel": "APP",
    "merchantOrderReference": "633876923",
    "amount": { "currency": "INR", "value": 500 },
    "customer": {
      "name": "Vikas Pandey",
      "email": "vikas@example.com",
      "phone": "+919876543210"
    }
  }'

GET/orders

Get Orders

This API fetches a paginated list of orders associated with the authenticated merchant. It returns summary details for each order, including order ID, amount, status, customer information, and timestamps. Pagination parameters such as page number and page size can be used to control the result set. This endpoint is useful for listing, filtering, and managing orders efficiently.

Request Headers

Field	Type	Required	Description
`Authorization`	string	Required	Bearer access token.

Response Fields

Field	Type	Required	Description
`data`	array	Required	List of merchant orders. (see the example for more details)
`totalRecords`	number	Required	total number of orders
`totalPages`	number	Required	total pages available
`page`	number	Required	Current page number.

Example Response

{
  "totalRecords": "84",
  "totalPages": "9",
  "page": "1",
  "data": [
    {
      "displayOrderId": "ORD-119123-VX",
      "orderId": "6d8bf86d-3758-45ae-ad67-0f682ba64f63",
      "channel": "ECOMM",
      "merchantId": "85ede33f-c1e7-441c-a1f3-b924cf158c13",
      "orderDate": "2026-01-07T17:42:03.706Z",
      "merchantOrderReference": "6338769",
      "orderAmount": {
        "value": 8000,
        "currency": "INR"
      },
      "orderStatus": "OPEN",
      "customer": {
        "name": "Vikas",
        "email": "Vikas.pandey@optivest.com",
        "phone": "+1234567890",
        "address": {
          "street": "123 Main St",
          "city": "New York",
          "state": "NY",
          "postalCode": "10001",
          "country": "IND"
        }
      },
      "orderDetails": {
        "items": [
          {
            "name": "Product A",
            "quantity": 2,
            "unitPrice": 2000
          },
          {
            "name": "Product B",
            "quantity": 1,
            "unitPrice": 4000
          }
        ],
        "metadata": {
          "note": "Deliver between 9 AM and 5 PM",
          "source": "mobile_app"
        }
      }
    }
  ]
}

Code Examples

cURL

curl -X GET "https://api.veepe.in/v1/orders?page=1"   -H "Authorization: Bearer <access_token>"

GET/orders/{orderId}

Get Order

This API retrieves comprehensive information for a specific order identified by its order ID. The response includes order amount, customer details (name, email, phone, and address), order items with quantity and unit price, metadata, and timestamps. It provides a complete snapshot of the order for tracking, auditing, or display purposes.

Request Parameters

Field	Type	Required	Description
`orderId`	string	Required	the UUID generated by the system as orderId, api does not support displayOrderId

Request Headers

Field	Type	Required	Description
`Authorization`	string	Required	Bearer access token.

Response Fields

Field	Type	Required	Description
`displayOrderId`	string	Required	Human-readable order ID.
`orderId`	string	Required	Unique internal order identifier.
`channel`	string	Required	Channel from which the order was placed.
`merchantId`	string	Required	Unique merchant identifier.
`orderDate`	string	Required	ISO8601 timestamp when the order was created.
`merchantOrderReference`	string	Required	Merchant's reference for the order.
`orderAmount.value`	number	Required	Total order amount value.
`orderAmount.currency`	string	Required	Currency code (ISO 4217).
`orderStatus`	string	Required	Current status of the order.
`customer.name`	string	Optional	Customer name.
`customer.email`	string	Optional	Customer email.
`customer.phone`	string	Optional	Customer phone number.
`customer.address.street`	string	Optional	Street address.
`customer.address.city`	string	Optional	City.
`customer.address.state`	string	Optional	State.
`customer.address.postalCode`	string	Optional	Postal code.
`customer.address.country`	string	Optional	Country code.
`orderDetails.items[].name`	string	Optional	Item name.
`orderDetails.items[].quantity`	number	Optional	Quantity of the item.
`orderDetails.items[].unitPrice`	number	Optional	Unit price of the item.
`orderDetails.metadata.note`	string	Optional	Delivery note.
`orderDetails.metadata.source`	string	Optional	Source of the order (e.g., mobile_app).
`orderStatusEvents[].eventName`	string	Optional	Event name when status of the order is updated
`orderStatusEvents[].payload.createdAt`	string	Optional	Timestamp of the event.
`orderStatusEvents[].payload.orderStatus`	string	Optional	Status at this event.
`orderStatusEvents[].payload.orderStatusComment`	string	Optional	Optional comment for status change.

Example Response

{
  "displayOrderId": "ORD-119123-VX",
  "orderId": "6d8bf86d-3758-45ae-ad67-0f682ba64f63",
  "channel": "ECOMM",
  "merchantId": "85ede33f-c1e7-441c-a1f3-b924cf158c13",
  "orderDate": "2026-01-07T17:42:03.706Z",
  "merchantOrderReference": "6338769",
  "orderAmount": {
    "value": 8000,
    "currency": "INR"
  },
  "orderStatus": "CONFIRMED",
  "customer": {
    "name": "Vikas",
    "email": "Vikas.pandey@optivest.com",
    "phone": "+1234567890",
    "address": {
      "street": "123 Main St",
      "city": "New York",
      "state": "NY",
      "postalCode": "10001",
      "country": "IND"
    }
  },
  "orderDetails": {
    "items": [
      {
        "name": "Product A",
        "quantity": 2,
        "unitPrice": 2000
      },
      {
        "name": "Product B",
        "quantity": 1,
        "unitPrice": 4000
      }
    ],
    "metadata": {
      "note": "Deliver between 9 AM and 5 PM",
      "source": "mobile_app"
    }
  },
  "orderStatusEvents": [
    {
      "eventName": "ORDER_STATUS_UPDATED",
      "payload": {
        "createdAt": "2026-01-08T10:03:47.666786093Z",
        "orderStatus": "CONFIRMED",
        "orderStatusComment": "Order CONFIRMED"
      }
    }
  ]
}

Code Examples

cURL

curl -X GET https://api.veepe.in/v1/orders/{orderId}   -H "Authorization: Bearer <access_token>"

PUT/orders/{orderId}

Update Order

This API allows updating an existing order that is currently in the OPEN state. You can modify the total order amount, update customer information (such as name, email, phone, or address), or change the order items, including their quantity, unit price, or associated metadata. The API ensures that only orders in the OPEN state can be updated

Request Headers

Field	Type	Required	Description
`Authorization`	string	Required	Bearer access token.
`Content-Type`	string	Required	application/json.

Request Body

Field	Type	Required	Description
`amount.value`	number	Required	order amount value.
`amount.currency`	string	Required	Currency code (ISO 4217).
`customer.name`	string	Optional	Customer name.
`customer.email`	string	Optional	Customer email.
`customer.phone`	string	Optional	Customer phone number.
`customer.address.street`	string	Optional	Street address.
`customer.address.city`	string	Optional	City.
`customer.address.state`	string	Optional	State.
`customer.address.postalCode`	string	Optional	Postal code.
`customer.address.country`	string	Optional	Country code.
`orderDetails.items[].name`	string	Optional	Item name.
`orderDetails.items[].quantity`	number	Optional	Quantity of the item.
`orderDetails.items[].unitPrice`	number	Optional	Unit price of the item.
`orderDetails.metadata.note`	string	Optional	Delivery note.
`orderDetails.metadata.source`	string	Optional	Source of the order (e.g., mobile_app).

Example Request

{
  "amount": {
    "currency": "INR",
    "value": 200
  },
  "customer": {
    "name": "Vaidik Pandey",
    "email": "Vaidik.pandey.customer@example.com",
    "phone": "+919876543210",
    "address": {
      "street": "456 Civil Lines",
      "city": "Raipur",
      "state": "Chhattisgarh",
      "postalCode": "492001",
      "country": "IND"
    }
  },
  "orderDetails": {
    "items": [
      {
        "name": "Product A",
        "quantity": 1,
        "unitPrice": 200
      }
    ],
    "metadata": {
      "note": "Deliver between 9 AM and 5 PM asdasd ada d",
      "source": "app"
    }
  }
}

Response Fields

Field	Type	Required	Description
`success`	boolean	Required	Update status.

Example Response

{
  "success": true
}

Code Examples

cURL

curl -X PUT https://api.veepe.in/v1/orders/{orderId}   -H "Content-Type: application/json"   -H "Authorization: Bearer <access_token>"   -d '{
    "customer": {
      "name": "Updated Name",
      "email": "updated@example.com"
    }
  }'

PUT/orders/{orderId}/status

Update Order Status

This API updates the lifecycle status of a specific order. It allows changing the order’s current state (e.g., from OPEN to CONFIRMED, CANCELLED, or COMPLETED) based on business rules. Only valid state transitions are permitted, and attempts to update orders in an incompatible state will result in an error. This endpoint is essential for managing order progress, tracking fulfillment, and maintaining accurate order records, allowed Order status are OPEN, CONFIRMED, PROCESSING, SHIPPED, DELIVERED, CANCELLED, REFUNDED, FAILED, CLOSED;

Request Headers

Field	Type	Required	Description
`Content-Type`	string	Required	application/json.
`Authorization`	string	Required	Bearer access token.

Request Body

Field	Type	Required	Description
`orderStatus`	string	Required	New order status.
`note`	string	Required	status note.

Example Request

{
  "orderStatus": "CONFIRMED",
  "note": "this order is available in inventory so confirm it"
}

Response Fields

Field	Type	Required	Description
`success`	boolean	Required	Updated status.

Example Response

{
  "success": "true"
}

Code Examples

cURL

curl -X PUT https://api.veepe.in/v1/orders/{orderId}/status   -H "Content-Type: application/json"   -H "Authorization: Bearer <access_token>"   -d '{
    "orderStatus": "CONFIRMED"
  }'

POST/orders/{orderId}/checkout-link

Create Checkout Link

Generates a hosted checkout link for an existing OPEN order. The checkout link can be shared with the customer to complete payment using supported payment methods such as UPI, Cards, or NetBanking. The order must already exist and be in a payable state. No new order or payment intent is created at this step.

Request Headers

Field	Type	Required	Description
`Authorization`	string	Required	Bearer Authorization header. Example: Bearer <access_token> generated via the /token endpoint.

Response Fields

Field	Type	Required	Description
`sessionId`	string	Required	Unique identifier for the generated checkout link.
`checkoutPageUrl`	string	Required	Hosted payment page URL that can be shared with the customer.
`orderId`	string	Required	Associated orderId for which the checkout link was generated.
`expiresAt`	string	Optional	ISO-8601 timestamp indicating when the checkout link expires, if applicable.
`createdAt`	string	Required	ISO-8601 timestamp of checkout link creation.

Example Response

{
  "sessionId": "chk_9f1c2e8b4d",
  "orderId": "7b719e75-b235-4ffb-8130-efcae8f6bd90",
  "checkoutPageUrl": "https://<CHECKOUT_PAGE_URL>",
  "createdAt": "2026-01-15T18:25:12.441Z",
  "expiresAt": "2026-01-16T18:25:12.441Z"
}

Code Examples

cURL

curl -X POST https://api.veepe.in/v1/orders/{orderId}/checkout-link   -H "Content-Type: application/json"   -H "Authorization: Bearer <access_token>"   -d '{
    "redirectUrl": "https://yoursite.com/payment-complete",
    "callbackUrl": "https://yoursite.com/api/webhook"
  }'

GET/orders/{orderId}/checkout-link

Get Checkout page

Fetches the hosted checkout details for an existing order. This endpoint returns the checkout session associated with the order, including the hosted checkout page URL that can be shared with the customer to complete payment. If no checkout session exists, the platform may create one implicitly or return an error based on configuration.

Request Headers

Field	Type	Required	Description
`Authorization`	string	Required	Bearer Authorization header i.e. Bearer <access_token>, the same token which got generated using /token endpoint

Response Fields

Field	Type	Required	Description
`sessionId`	string	Required	Unique identifier for the generated checkout link.
`checkoutPageUrl`	string	Required	Hosted payment page URL that can be shared with the customer.
`orderId`	string	Required	Associated orderId for which the checkout link was generated.
`expiresAt`	string	Optional	ISO-8601 timestamp indicating when the checkout link expires, if applicable.
`createdAt`	string	Required	ISO-8601 timestamp of checkout link creation.

Example Response

{
  "sessionId": "chk_9f1c2e8b4d",
  "orderId": "7b719e75-b235-4ffb-8130-efcae8f6bd90",
  "checkoutPageUrl": "https://<CHECKOUT_PAGE_URL>",
  "createdAt": "2026-01-15T18:25:12.441Z",
  "expiresAt": "2026-01-16T18:25:12.441Z"
}

Code Examples

cURL

curl -X GET https://api.veepe.in/v1/orders/{orderId}/checkout-link   -H "Authorization: Bearer <access_token>"

POST/reports

Generate Report

This API generates a PDF report of orders within a specified time range. The report includes detailed order information such as order ID, customer details, order amount, status, items, and timestamps. Users can specify the start and end dates to filter orders. The generated PDF is formatted for easy viewing, printing, and sharing, making it suitable for business reporting, audits, and management review

Request Headers

Field	Type	Required	Description
`Authorization`	string	Required	Bearer access token.
`Content-Type`	string	Required	application/json.

Request Body

Field	Type	Required	Description
`type`	string	Required	Report type. i.e. ORDER_REPORT
`startTimestamp`	string	Required	Start timestamp in ms.
`endTimestamp`	string	Required	End timestamp in ms.

Example Request

{
  "type": "ORDER_REPORT",
  "startTimestamp": "1751932800000",
  "endTimestamp": "1754428799000"
}

Response Fields

Field	Type	Required	Description
`reportId`	string	Required	Unique identifier for the generated report.
`type`	string	Required	Type of the report (e.g., Orders, Payments).
`status`	string	Required	Current status of the report generation (e.g., PENDING, COMPLETED).
`message`	string	Required	Optional message or error details related to report generation.
`downloadLink`	string	Required	URL to download the generated PDF report once ready.
`createdAt`	string	Required	Timestamp when the report was created (ISO 8601 format).

Example Response

{
  "reportId": "ab03a1b5-1179-4a68-9062-1921ffb01ae8",
  "type": "TRANSACTIONS_REPORT",
  "status": "PENDING",
  "message": "Report generation request accepted",
  "downloadLink": null,
  "createdAt": "2026-01-08T11:16:46.371131587Z"
}

Code Examples

cURL

curl -X POST https://api.veepe.in/v1/reports   -H "Content-Type: application/json"   -H "Authorization: Bearer <access_token>"   -d '{
    "reportType": "TRANSACTION_SUMMARY",
    "startDate": "2026-01-01",
    "endDate": "2026-01-31"
  }'

GET/reports

Get Reports

This API retrieves a paginated list of all reports generated for the authenticated merchant. Each report includes details such as report ID, type, generation status, optional messages, download link (if ready), and creation timestamp. Pagination parameters allow efficient browsing through large numbers of reports.

Request Parameters

Field	Type	Required	Description
`page`	number	Optional	Page number to retrieve (default is 1).

Request Headers

Field	Type	Required	Description
`Authorization`	string	Required	Bearer access token.
`Content-Type`	string	Required	application/json.

Response Fields

Field	Type	Required	Description
`totalRecords`	string	Required	Total number of reports available.
`totalPages`	string	Required	Total number of pages available based on page size.
`page`	string	Required	Current page number returned.
`data[].reportId`	string	Required	Unique identifier for the generated report.
`data[].type`	string	Required	Type of the report (e.g., ORDER_REPORT, TRANSACTIONS_REPORT).
`data[].status`	string	Required	Current status of report generation (e.g., PENDING, COMPLETED, FAILED).
`data[].message`	string	Optional	Optional message or error details related to report generation.
`data[].downloadLink`	string	Optional	URL to download the PDF report once ready. Null if pending or failed.
`data[].createdAt`	string	Required	Timestamp when the report was created (ISO 8601 format).

Example Response

{
  "totalRecords": "2",
  "totalPages": "1",
  "page": "1",
  "data": [
    {
      "reportId": "ab03a1b5-1179-4a68-9062-1921ffb01ae8",
      "type": "TRANSACTIONS_REPORT",
      "status": "COMPLETED",
      "message": null,
      "downloadLink": "https://someurl/ab03a1b5-1179-4a68-9062-1921ffb01ae8.pdf",
      "createdAt": "2026-01-08T11:16:46.371Z"
    },
    {
      "reportId": "7b84e590-1640-403c-9cb3-e5094f76e8a7",
      "type": "TRANSACTIONS_REPORT",
      "status": "COMPLETED",
      "message": null,
      "downloadLink": "https://someurl/7b84e590-1640-403c-9cb3-e5094f76e8a7.pdf",
      "createdAt": "2025-10-03T07:48:31.016Z"
    }
  ]
}

Code Examples

cURL

curl -X GET "https://api.veepe.in/v1/reports?page=1"   -H "Authorization: Bearer <access_token>"

GET/reports/{reportId}

Get Report

This API retrieves the status and details of a previously requested report using its unique report ID. It returns information such as report type, current generation status, optional messages, download link (if the report is ready), and creation timestamp. Useful for tracking report progress and downloading completed PDF reports.

Request Parameters

Field	Type	Required	Description
`reportId`	string	Required	Unique identifier of the report to retrieve.

Request Headers

Field	Type	Required	Description
`Authorization`	string	Required	Bearer access token.
`Content-Type`	string	Required	application/json.

Response Fields

Field	Type	Required	Description
`reportId`	string	Required	Unique identifier for the generated report.
`type`	string	Required	Type of the report (e.g., ORDER_REPORT, TRANSACTIONS_REPORT).
`status`	string	Required	Current status of the report generation (e.g., PENDING, COMPLETED, FAILED).
`message`	string	Required	Optional message or error details related to report generation.
`downloadLink`	string	Optional	URL to download the generated PDF report once ready. Null if the report is still pending or failed.
`createdAt`	string	Required	Timestamp when the report was created (ISO 8601 format).

Example Response

{
  "reportId": "ab03a1b5-1179-4a68-9062-1921ffb01ae8",
  "type": "ORDER_REPORT",
  "status": "COMPLETED",
  "message": "Report generated successfully",
  "downloadLink": "https://example.com/reports/ab03a1b5-1179-4a68-9062-1921ffb01ae8.pdf",
  "createdAt": "2026-01-08T11:16:46.371131587Z"
}

Code Examples

cURL

curl -X GET https://api.veepe.in/v1/reports/{reportId}   -H "Authorization: Bearer <access_token>"

POST/orders/{orderId}/invoice

Create Invoice

This API generates an invoice for a specific order identified by its order ID. The invoice includes order details, customer information, itemized charges, taxes, and the total payable amount. The generated invoice is provided as a downloadable PDF, suitable for billing, record-keeping, and sharing with customers

Request Parameters

Field	Type	Required	Description
`orderId`	string	Required	Unique identifier of the order

Request Headers

Field	Type	Required	Description
`Authorization`	string	Required	Bearer access token.

Response Fields

Field	Type	Required	Description
`orderId`	string	Required	OrderId of invoice
`invoiceId`	string	Required	Generated invoice ID. Unique identifier of the invoice
`createdDate`	string	Required	Generated invoice datetime.

Example Response

{
  "orderId": "c8826e17-51a0-4f91-bfce-2182deeb8abb",
  "invoiceId": "49de56b1-22b8-41ec-9945-668085295e3e",
  "createdDate": "2026-01-08T11:44:31.277598511Z"
}

Code Examples

cURL

curl -X POST https://api.veepe.in/v1/orders/{orderId}/invoice   -H "Content-Type: application/json"   -H "Authorization: Bearer <access_token>"   -d '{
    "invoiceType": "STANDARD",
    "dueDate": "2026-02-15"
  }'

GET/orders/{orderId}/invoice/{invoiceId}

Get Invoice

This API retrieves the invoice for a specific order and returns a downloadable PDF link. The response includes invoice metadata, status, and a secure URL to download the invoice for billing, record-keeping, and sharing purposes.

Request Parameters

Field	Type	Required	Description
`orderId`	string	Required	Unique identifier of the order
`invoiceId`	string	Required	Unique identifier of the invoice

Request Headers

Field	Type	Required	Description
`Authorization`	string	Required	Bearer access token.

Response Fields

Field	Type	Required	Description
`orderId`	string	Required	Unique identifier of the order associated with the invoice.
`invoiceId`	string	Required	Internal or system-generated URL referencing the invoice.
`merchantId`	string	Required	Unique identifier of the merchant who issued the invoice.
`merchantName`	string	Required	Registered name of the merchant issuing the invoice.
`status`	string	Required	Current status of the invoice (e.g., GENERATED, PAID, CANCELLED).
`downloadLink`	string	Optional	Secure URL to download the invoice PDF.
`createdDate`	string	Required	Timestamp when the invoice was generated (ISO 8601 format).
`updatedAt`	string	Required	Timestamp when the invoice was last updated (ISO 8601 format).

Example Response

{
  "orderId": "c8826e17-51a0-4f91-bfce-2182deeb8abb",
  "invoiceId": "49de56b1-22b8-41ec-9945-668085295e3e",
  "createdDate": "2026-01-08T11:44:31.277Z",
  "merchantId": "85ede33f-c1e7-441c-a1f3-b924cf158c13",
  "merchantName": "Amazon Ind Pvt ltd",
  "status": "COMPLETED",
  "updatedAt": "2026-01-08T11:44:38.328Z",
  "downloadLink": "https://someurl/c8826e17-51a0-4f91-bfce-2182deeb8abb.pdf"
}

Code Examples

cURL

curl -X GET https://api.veepe.in/v1/orders/{orderId}/invoice/{invoiceId}   -H "Authorization: Bearer <access_token>"
